HyperCloud Setup
Warning
If you are reusing nodes from an existing HyperCloud cluster or plan to repurpose nodes from a legacy HyperDrive cluster then all the nodes must first be reset to factory state before continuing.
The HyperCloud cluster is configured in stages:
- Boot the static nodes
- Boot any remaining storage nodes
- Boot the compute nodes
- Configure the HyperCloud Dashboard
Tip
To allow faster cluster convergence on an initial build, it is recommended to set the hardware clock from the UEFI to a time and date as closely together as possible. If the node clocks are too far apart then cluster convergence may take several hours.
Boot the Static Nodes
-
Attach a serial console cable to the first static node and power up (serial baud rate 115200)
-

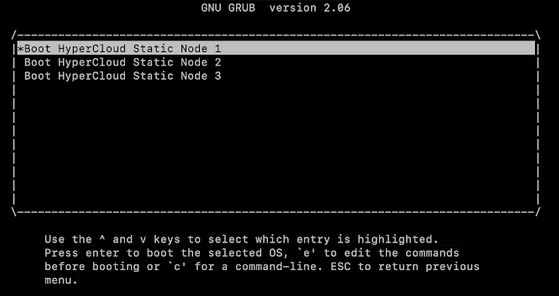

Select Boot HyperCloud Static Node 1
-
If this is the first time booting the node will determine if the system time has been configured and may prompt the user to manually set the system time:
The current system time is: 16:24:33 2023/10/25 Please choose one of the following: 1: Change the system time 2: Keep the current system time > 1 Enter a new system time with the format: hour:minute:seconds year/month/day For example: 23:08:41 2023/09/21 The system time must be UTC > 16:25:30 2023/10/25 New system time is : 16:25:30 2023/10/25 Would you like to apply the new system time? 1: Apply the new system time 2: Change the new system time > 1
- Once the user either confirms the system time or manually inputs the time in the specific format, the system will record this time and no longer prompt for this information in future boots.

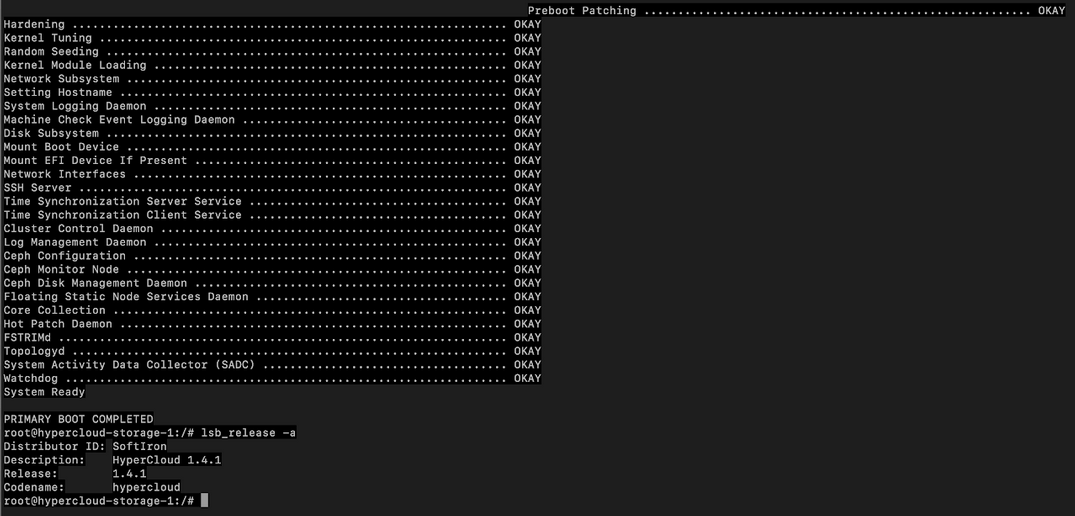

- Wait for the boot to complete and HyperCloud to perform system checks.
- Verify release information:
-
-
Attach a serial console cable to the second static node and power up

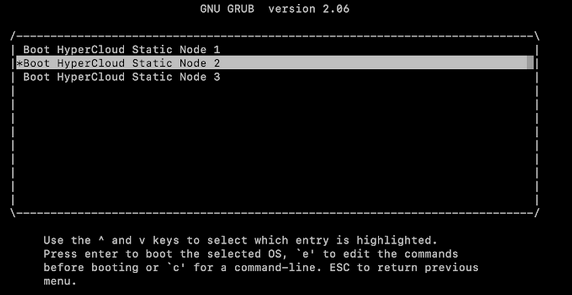

- Select Boot HyperCloud Static Node 2
-
Attach a serial console cable to the third static node and power up

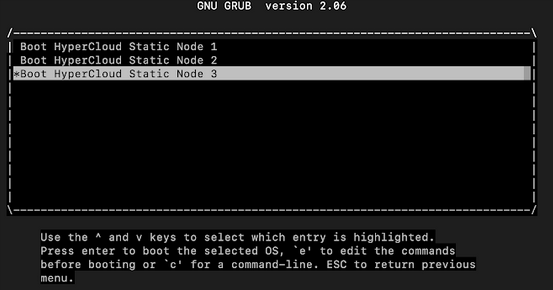

- Select Boot HyperCloud Static Node 3
-

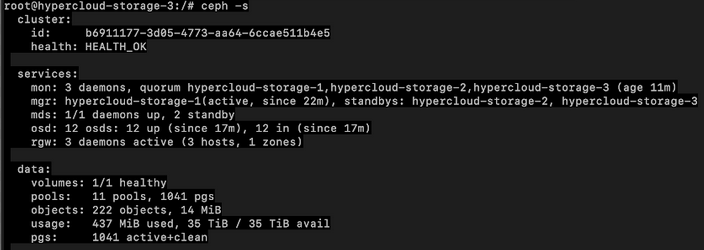

Watch for the OSDs to be created
- Run
ceph -s
to verify
- Run
Boot the Storage Nodes
-
Boot any remaining Storage Nodes one by one, ensuring they PXE boot
-
Watch for the OSDs to be created
- Run
ceph -s
to verify
- Run
Boot the Compute Nodes
-

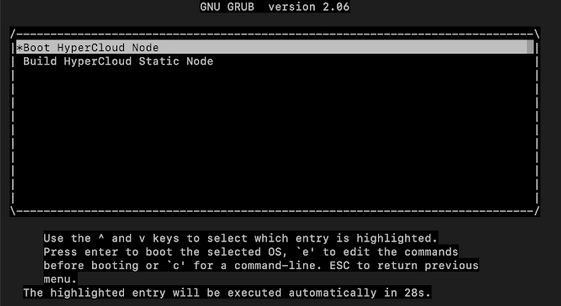

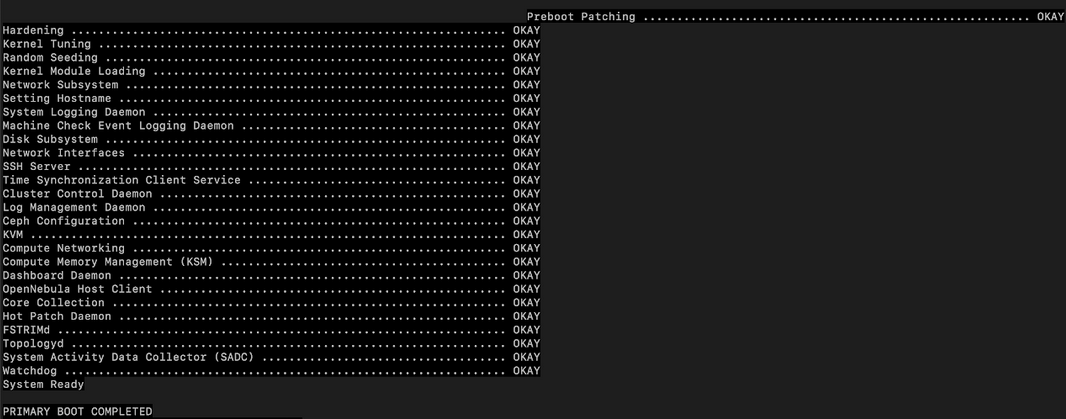

Power up the Compute Nodes one by one, ensuring they PXE boot
Tip
There is no need to wait for them to boot fully.
Setup HyperCloud Dashboard
-

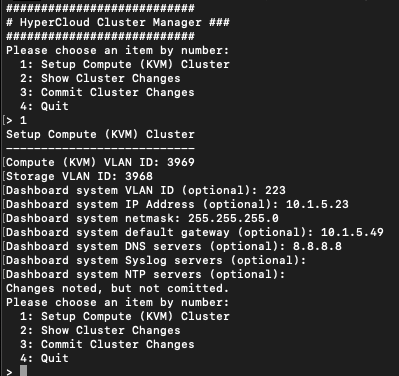

Once all three static nodes are up use one to set the following information using:
Parameter Value Compute (KVM) VLAN ID 3369 (unless changed in Interconnect Setup) Storage VLAN ID 3368 (unless changed in Interconnect Setup) Dashboard system VLAN ID optional Dashboard system IP Address optional Dashboard system netmask recommended value: 255.255.255.0 Dashboard system default gateway optional Dashboard system DNS servers optional Dashboard system Syslog servers optional Dashboard system NTP servers optional Tip
The Dashboard system IP Address set above is the same IP address used by Glasshouse the management GUI
-
Check that the HyperCloud dashboard comes up.
Tip
- On the first compute node you should see the dashboard with
virsh list

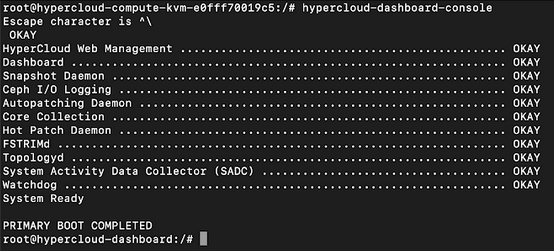

. - You can connect to the command line of the dashboard with
hypercloud-dashboard-console
from that hostname.
- On the first compute node you should see the dashboard with
Retrieve Admin Credentials
Open Glasshouse
-
Using your web browser of choice, navigate to the URL which points to your HyperCloud Dashboard e.g.
https://<dashboard IP>
. This will open Glasshouse, the HyperCloud management GUI (Graphical User Interface). Glasshouse is used administer the cluster and to create, manage, and share Virtual Machines.Tip
The dashboard IP & cluster admin password are specified in the dashboard configuration step above.
-
Log in with the Admin Credentials
-
This is a good opportunity to add SSH keys to the Cluster SSH Authorized Keys
